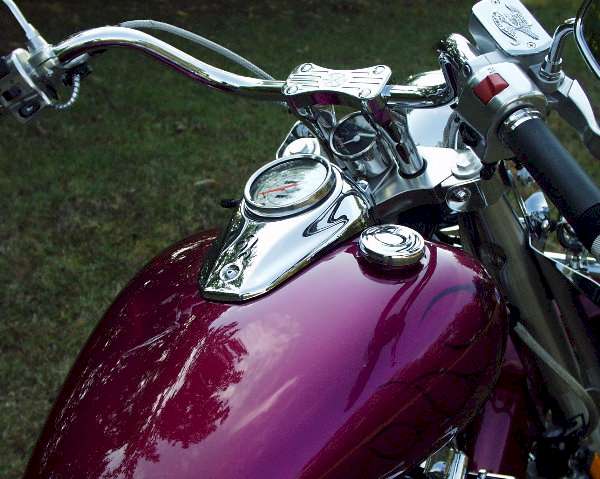

• Here is a simple way to hide the handlebar wires and clean up that area .

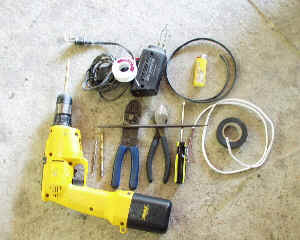

  You will need the following parts & tools :



  Drill with 3/8" bit , Phillips head driver

  8 conductor phone wire , notepad and pen

  Solder , Heat shrink wrap ,electrical tape

  Round file , Butane lighter and soldering gun

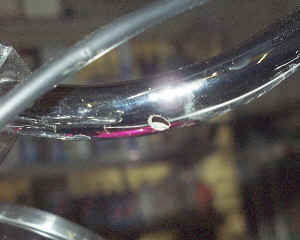

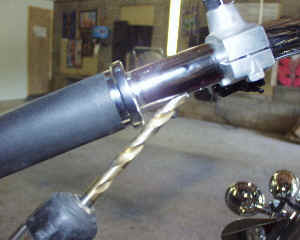

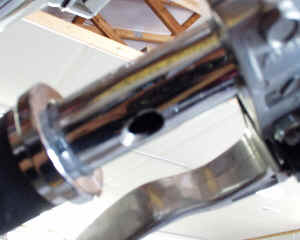

  You will start by removing the control units from the handle bars.   note: you can leave the grips and mirror mounts . Just remove the end caps from the grips .   Drill a hole into the bar on each side in a location that will be covered by the controls.   Angle this hole as much as possible toward the center of the bike.   Also drill a hole in the lower part of the bar (in the bend ) for the wires to enter the bar. Angle these holes toward the bars end.   Use the round file to get rid of burs in these holes after drilling .




Do this step VERY thoughtfully to prevent chaffing of the wires

Make sure there are no roughedges inside the bar .

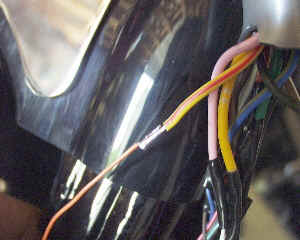

Now pull the wiring harness away from the fork area and cut the wires in a staggered fashion . Make each wire approx 1/4" longer than the next one . Doing this will ensure no wire will touch another after they are soldered. Solder a length of phone cable to the wires to come out the bars end . You may need to add a couple of individual wires to one side as some controls have more than 8 wires on one side. After soldering the wires and writing down the matching colors on a notepad , apply heat shrink to the entire length of the cable before pushing through the hole you drilled in the bottom of the bars.

You are 90% finished at this point.

Using the holes that were drilled under the control housing , reroute the control wires to the end of the bars. Placing them in heat shrink will protect and make them easier to feed into the bars  .

Using the notes on wire colors that you made when splicing the
wires , reconnect with solder and heat shrink insulation at the bars end using as little wire hanging out as possible . You must push this wire back into the bar after wrapping the connections with tape

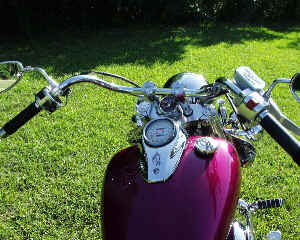

That's it ....You are finished !!
